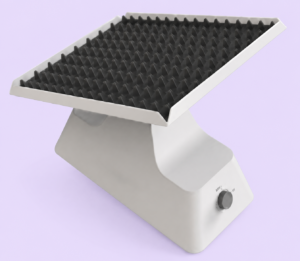

3D Shaker

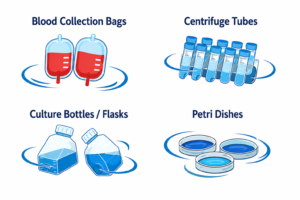

The 3D shaker is a compact mixing device designed for gentle blending of blood bags, centrifuge tubes, culture flasks, Petri dishes, and similar laboratory containers. Its three-dimensional orbital motion provides smooth mixing without bubble formation, making it well suited for handling small-volume samples.

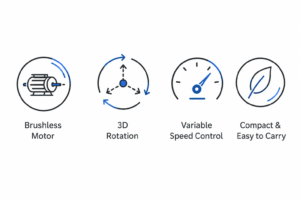

Features:

  • Equipped with a brushless motor for smooth and reliable performance
  • Uses a soft 3D rotational mixing motion to protect sensitive samples
  • Available with either adjustable speed control or fixed-speed operation
  • Small and lightweight design allows use inside incubators or low-temperature chambers
  • Raised, non-slip silicone platform enhances stability and improves mixing efficiency

Applications:

Specifications

Product CodePBI009PBI010PBI011 (Battery Model)
Tray size234×168 mm234×168 mm234×168 mm
Max load2 kg2 kg2 kg
Speed range20 rpm0–27 rpm adjust0–27 rpm adjust
Mix methodThree dimensionalThree dimensionalThree dimensional
Power20 W20 W20 W
DimensionL220×W176×H165 mmL220×W176×H165 mmL220×W176×H165 mm
Weight1.7 kg1.7 kg1.7 kg
Power supply100–240V; 50/60Hz100–240V; 50/60HzBattery operated
