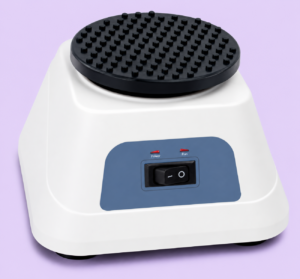

Vortex Mixer



Vortex mixers are widely used in life science research as well as physical and chemical laboratories for shaking, blending, and agitating samples such as tissues, cells, bacterial suspensions, and chemical solutions. Multiple adapter options are available to accommodate test tubes from 0.2 to 50 ml, as well as small vessels with diameters up to 108 mm.

Features:

  • Compact, dependable design with low energy use and quiet operation
  • Available in two versions: constant speed or variable high/low speed
  • Suitable for a wide range of mixing tasks when used with compatible adapters
  • Supports various sample containers, including centrifuge tubes, PCR plates, cell culture plates, and deep-well plates
  • Smooth and stable performance with minimal speed deviation and extended operational lifespan

Works with a Wide Range of Labware

Supports various sample containers including Centrifuge Tubes, PCR Plates, Cell Culture Plates and Deep-Well Plates.

Specifications

Product CodePBI003PBI004
Power30W30W
Load adapterFlat vibrating headFlat vibrating head / Microplate clamp
Speed range2800rpmL:1300rpm / H:2800rpm
Vibration amplitude4mm4mm
Mix methodOrbitalOrbital
Working modeContinuousContinuous
Dimension (LxWxH)160×160×115mm160×160×115mm
Weight3.75kg3.75kg
Power supply110V/220V, 50/60Hz110V/220V, 50/60Hz
