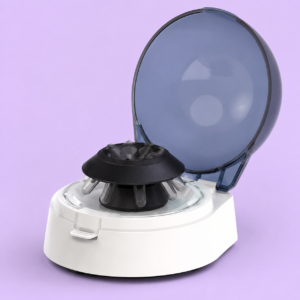

Mini Centrifuge



The Mini Centrifuge is an ideal solution for fast and efficient separation, microfiltration, and sample preparation tasks. It is specially designed for PCR experiments, pre-treatment procedures, and various routine laboratory applications, making daily lab work simple and reliable.

Features:

  • Compact design with low air resistance and reduced temperature increase
  • Operates at a maximum speed of up to 7000 rpm
  • Delivers smooth, quiet, and stable performance with very low vibration levels (noise≤50dB)
  • Quick-stop feature allows the rotor to halt within seconds after the lid is opened
  • Simple rotor installation and removal without the need for tools, ensuring easy handling
  • Suitable for 8×1.5/2 ml rotors as well as 4×PCR 8-strip rotors

Applications:

  • Ergonomic palm-style appearance
  • Silent and smooth operation
  • Easy-to-change rotor system
  • Powerful centrifugal performance
  • Automatic stop function when the lid is opened

Specifications

Product CodePBI018
Maximum Speed7000 rpm
Maximum Relative Centrifugal Force2680 × g
Rotor Capacity8×0.2/0.5/1.5/2.0; 32x0.2mlPCR tube; 4×0.2 ml PCR 8-strip tube
Motor TypeDC motor
Operating ModeContinuous
Noise Level≤50 dB
Dimensions (LxWxH)156 × 166 × 121 mm
Weight1.1 kg
Power supply100–240V, 50/60Hz
